Dry-Type Transformer Manufacturer | Project Supply
Dry-type and cast resin transformer models for industrial, commercial and renewable power systems, with project-specific engineering support.
Find the right fit
Review the related models and published parameters below. If your voltage, capacity or installation condition is different, send the requirement directly to our engineering team.
Dry-type / cast resin
Dry-type / cast resin
Dry-type / cast resin
Dry-type / cast resin
Dry-type / cast resin
Dry-type / cast resin
Why this solution
1. Fireproof and moisture-proof, high safety Epoxy resin vacuum casting or H-class insulation material, fireproof, moisture-proof, environmentally friendly
2. Low noise, no oil pollution
3. Overall closed structure, basically no maintenance required for daily operation.
4. Equipped with temperature control system, real-time monitoring of operating status, improving safety and intelligence level
5. Strong short-circuit resistance, high mechanical strength design, strong bonding between coils, strong resistance to electrical stress and thermal shock.
Typical project priorities
Technical data
Use these ranges as a starting point. Final values are confirmed against your project load, voltage system, installation environment and applicable standard.
| Transformer Type | Rated power(KVA) | voltage combination | Connec-tion symbol | Product Model | Short - circuit Impedance (%) | Insulation Class | ||
| HV tapping range(%) | HV (kV) | LV (kv) | ||||||

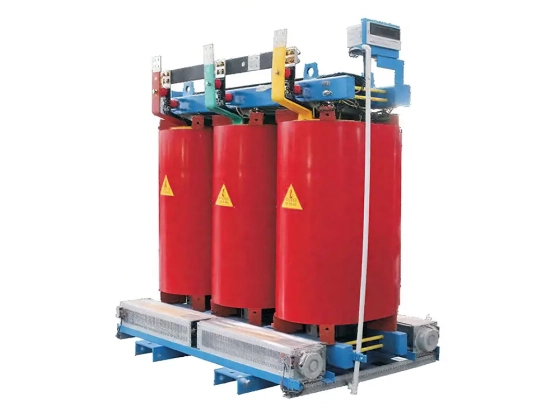

| SC (B) Series Epoxy Resin Transformer | 30-2500 | ±2x2.5 ±5 | 6 6.3 6.6 10 10.5 11 | 0.4 | Dyn11 Yyn0 | SC(B)12 SC(B)13 SC(B)14 SC(B)18 | 4.0、6.0 | F/F |

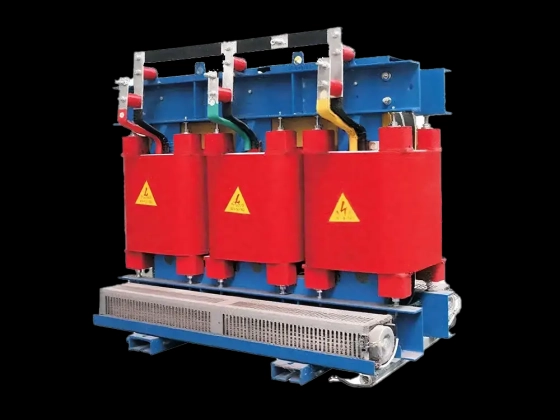

| SC (B) H Amorphous Alloy Transformer | SC(B)H15 SC(B)H16 SC(B)H17 SC(B)H19 | |||||||
| SCZ (B) On - load Tap - changing Transformer | 315 - 2500 | ±4x2.5 | sCZ(B)10 sCZ(B)11 sCZ(B)12 sCZ(B)13 | - | ||||

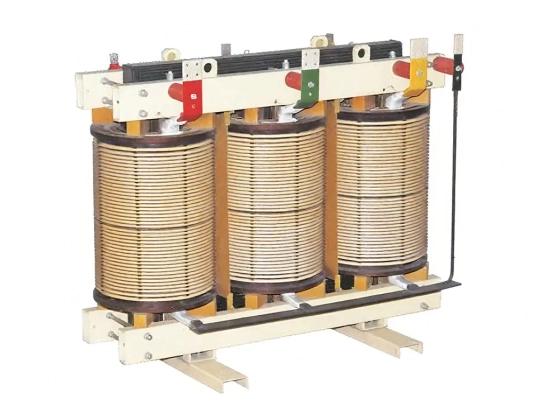

| SG (B) Non - encapsulated Environment - friendly Transformer | 30 - 2500 | ±2x2.5 ±5 | SG(B)10 SG(B)11 SG(B)12 SG(B)13 | - | ||||

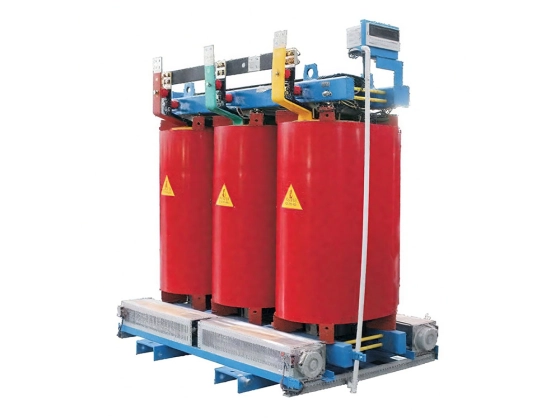

| SC (B) Series Epoxy Resin Transformer | 50 - 25000 | ±2.5 ±5 | 35 36 37 38.5 | 0.4 6 6.3 10 10.5 11 | Dyn11 Yd11 YNd11 | SC(B)10 SC(B)11 SC(B)12 SC(B)13 | 6.0, 7.0, etc. | F/F |

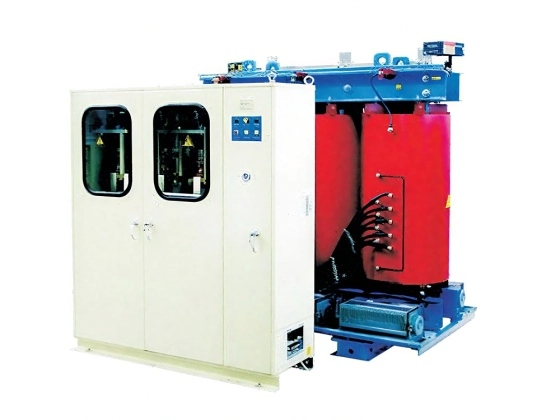

| SCZ (B) On - load Tap - changing Transformer | 2000 - 25000 | ±4x2.5 | 35 36 37 38.5 | 6 6.3 10 10.5 11 | Dyn11 Yd11 | SCZ(B)10 SCZ(B)11 SCZ(B)12 SCZ(B)13 | 7.0, 8.0, etc. | - |
How ZBB supports the project
We start with three practical questions: what the transformer must do, where it will operate and what documentation the project requires.
Remote guidance, comprehensive documentation, and third-party inspection support (e.g., SGS, BV, TUV) ensure peace of mind.
With complete production lines and mature procurement, we support urgent project delivery efficiently.
Quick feedback on technical drawings and quotations; prompt delivery of technical data after design confirmation.
We tailor size, wiring, and special structures (e.g., high altitude, extreme cold) based on customer drawings and usage scenarios.
Review available certificates and ask which routine tests, standards and third-party witnessing options apply to your project.
Manufacturing visibility
Winding, casting, curing and testing are coordinated with the technical documentation supplied for the project.
Explore ZBB Group
Before you send an inquiry
If your question is not listed, include it in the message. Our team can address it together with the technical review.
Next step
Share the information you already have. A complete specification is helpful, but you can start with the transformer type, capacity, voltage and application.
