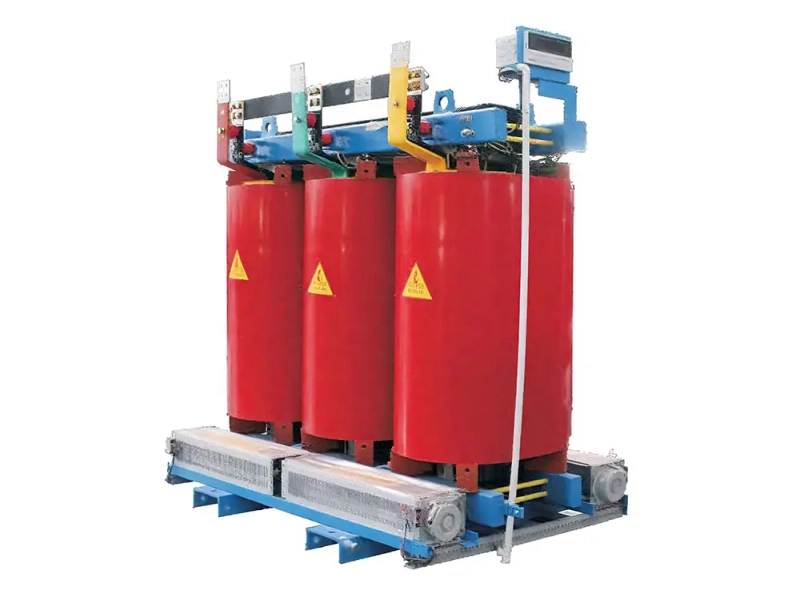

10kv SC(B)-30~2500KVA series ofepoxy resin cast dry-type power transformer classI-III energy efficiency

Product Introduction

The 10KV class SC(B)□-30~2500KVA series of epoxy resin cast dry-type transformers with Class II energy efficiency are formed by integrally casting the core and windings using advanced epoxy resin casting technology. Meeting the Class II energy efficiency standard, they have outstanding energy-saving effects and can provide stable power for high-rise buildings, commercial places, factories, and other facilities.

Product Features

This series of transformers has advantages in energy conservation, insulation, heat dissipation, mechanical strength, and environmental protection. Meeting the Class II energy efficiency standard, they reduce no-load and load losses to save costs. The epoxy resin has excellent insulation performance and can withstand high voltages. The optimized heat dissipation structure enables rapid heat dissipation and extends the service life. With relatively high mechanical strength, they can adapt to various installation environments. The epoxy resin material is environmentally friendly and has little impact on the environment.

Product Classification

They are divided into multiple specifications from 30KVA to 2500KVA according to capacity to meet the requirements of different power consumption scenarios. According to the protection level, they are classified into IP00, IP20, IP23, etc., which can be adapted to different environmental conditions. For example, IP00 is suitable for places with a good environment, IP20 is suitable for general indoor environments, and IP23 has certain waterproof capabilities.

After-sales Service

The company provides comprehensive after-sales services. A professional team is responsible for installation and commissioning. After on-site inspection, they will carry out standardized construction and comprehensive testing, and also train users. The company regularly inspects the equipment, responds quickly to repair failures, and establishes a maintenance file. It provides multi-channel technical support and training. The spare parts warehouse is complete, and information management ensures rapid delivery, guaranteeing quality while controlling costs.
