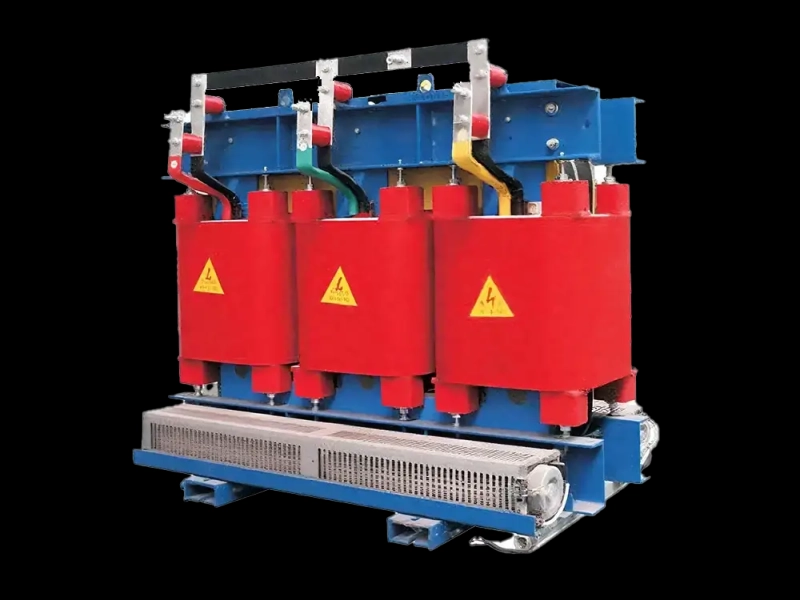

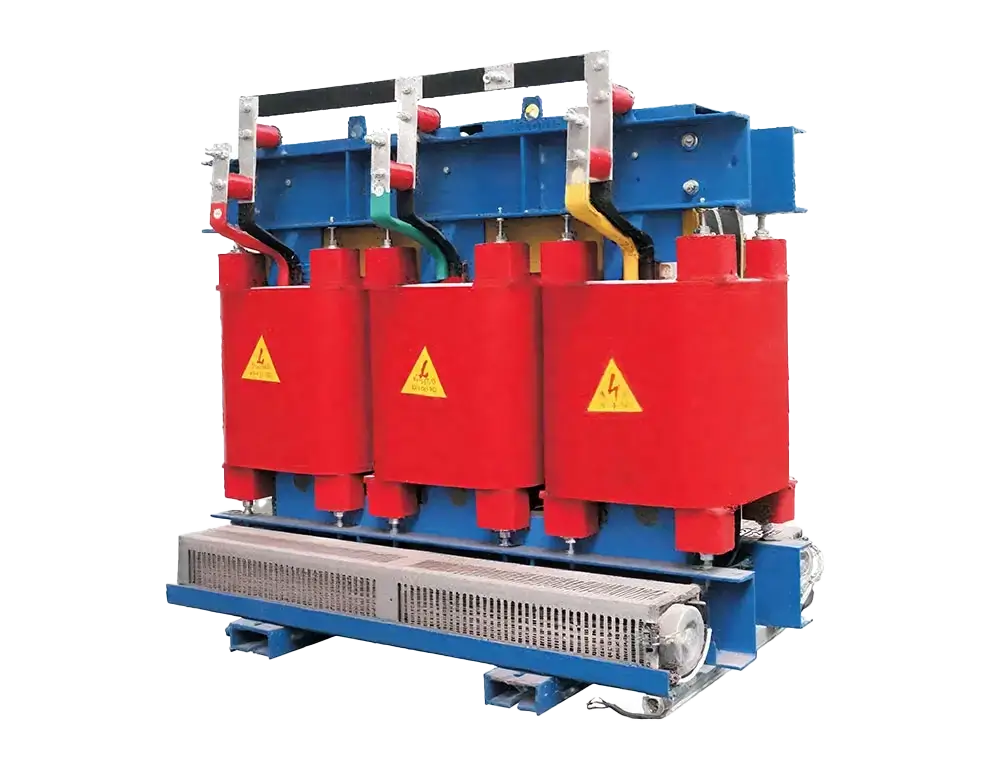

10kV SC(B)H-30~2500kVA series of amorphous alloy core dry type distribution power transformer class I - III energy efficiency

Product Introduction

The 10kV class SC(B)H□-30~2500kVA series of dry - type distribution Power Transformers with amorphous alloy cores have Class I - III energy efficiency. They adopt advanced manufacturing techniques, using amorphous alloy as the core material and a dry - type structure. They can effectively reduce transformer losses and provide efficient and stable power distribution solutions for residential communities, commercial blocks, small factories, and other places.

Product Features

This series of transformers has remarkable features. In terms of energy conservation, the amorphous alloy core has the characteristics of low magnetic permeability and high saturation magnetic induction intensity, which greatly reduces no - load losses and meets the Class I - III energy efficiency standard. Long - term operation can significantly save electricity costs. It has reliable insulation. Using high - quality insulating materials and processes, it can withstand high voltages and harsh environmental tests, ensuring safe operation. It has good heat dissipation. The optimized heat dissipation structure design, combined with the natural heat dissipation advantages of the dry - type structure, effectively reduces the operating temperature and extends the service life of the equipment. It has good mechanical properties. With a reasonable structural design, it has high mechanical strength and can resist vibrations and impacts during transportation, installation, and operation. Moreover, this transformer has low operating noise, creating a quiet environment for the surrounding area.

Product Classification

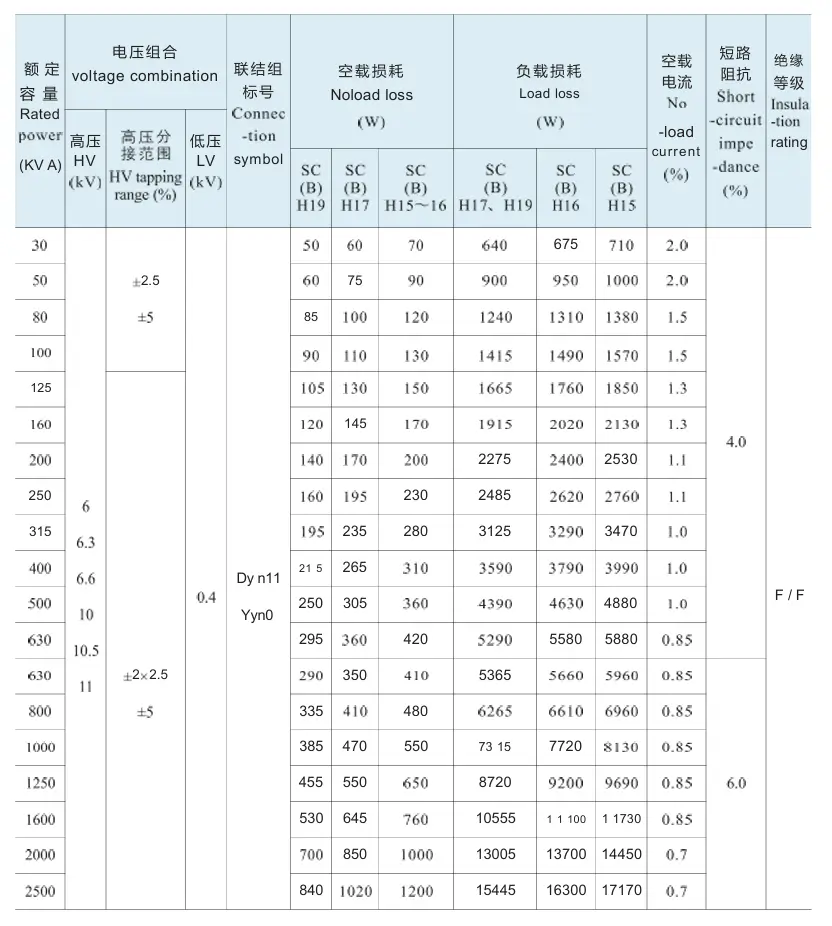

By Capacity: Divided into various specifications such as 30kVA, 50kVA, 80kVA, 100kVA, 125kVA, 160kVA, 200kVA, 250kVA, 315kVA, 400kVA, 500kVA, 630kVA, 800kVA, 1000kVA, 1250kVA, 1600kVA, 2000kVA, 2500kVA, etc., meeting the power distribution needs of different users.

By Protection Level: Including IP00, IP20, IP23, etc. IP00 is suitable for places with a good environment and no risk of foreign matter and water intrusion; IP20 can prevent solid foreign matter larger than 12mm from entering and is suitable for general indoor environments; in addition to the functions of IP20, IP23 can also prevent water spray within an angle of 60 degrees from the vertical line and is suitable for indoor and outdoor environments with certain protection requirements.

After-sales Service

The company provides comprehensive and high - quality after - sales services. A professional technical team is responsible for installation and commissioning. After arriving at the site, they carefully inspect the installation environment, construct strictly in accordance with standards and specifications, conduct a comprehensive inspection after installation, and provide operation and maintenance training for users. Regular inspections of the equipment are carried out in daily life to promptly detect and handle potential problems. When the equipment fails, the quick - response mechanism is activated, and professional maintenance personnel promptly arrive at the site for diagnosis and repair, and establish detailed maintenance files. Multi - channel technical support is provided, such as telephone and network, to answer users' questions at any time. Regular technical training will also be organized to improve users' operation and maintenance levels. The spare parts warehouse has sufficient reserves, and through information - based management means, rapid delivery is ensured, guaranteeing the quality of spare parts while reasonably controlling costs.
