75 kVA Single-Phase Pad-Mount Transformer
Technical parameters, project-specific options and a quotation based on your requirements
Product gallery
Project reference
Transformer product

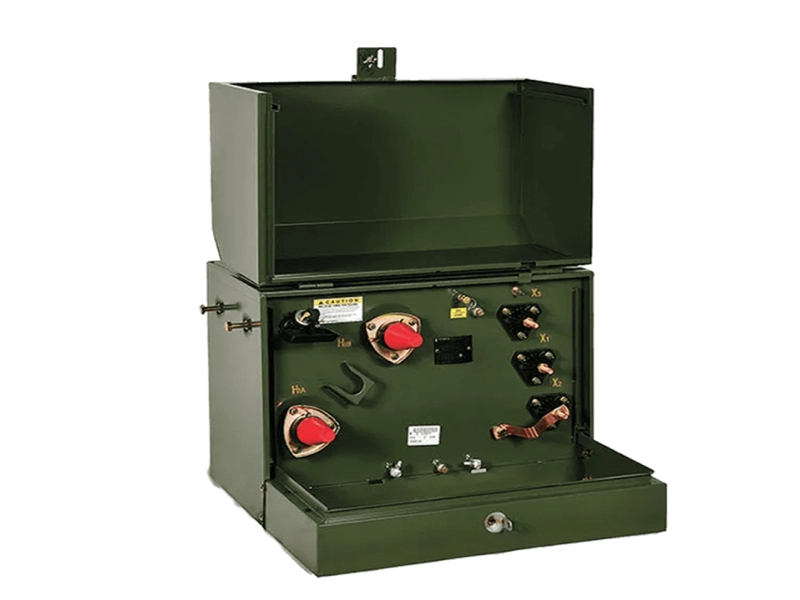

75 kVA Single-Phase Pad-Mount Transformer
Reliable transformer equipment configured around your voltage, capacity, application and project requirements.
ConfigurationCustom voltage & capacity
StandardsIEC / ANSI / IEEE support
DocumentationFactory test reports
Cooling Type
ONAN
Primary Voltage
2400-19,920 V
Secondary Voltage
120-600 V
Frequency
60 Hz
Certifications and documentation: ISO 9001, ISO 14001, ISO 45001, CE, UL
Engineering support for project-specific transformer selection
Custom voltage, capacity, vector group, enclosure and accessories
Factory testing, export documentation and after-sales support
Detailed information
Product details
This 75 kVA single-phase pad-mount transformer is designed for primary voltages of 2400–19,920 V and a secondary voltage range of 120–600 V at 60 Hz. Featuring ONAN cooling and non-PCB mineral oil insulation, it is built to ANSI/IEEE standards for reliable, low-maintenance residential and light commercial power distribution.
Designed around your systemConfirm voltage, capacity, frequency and installation conditions with our team.
Built for project reviewReceive a configuration, quotation and documentation matched to the application.
| Cooling Type | ONAN |
|---|---|
| Primary Voltage | 2400-19,920 V |
| Secondary Voltage | 120-600 V |
| Frequency | 60 Hz |
| Fluid Type | Non-PCB Mineral Oil |
Need a different voltage, capacity or accessory configuration? Send the requirement for a technical review.
From specification to delivery
Support for your transformer project
Transformer selection is more than choosing a capacity. We help align the electrical requirements, documentation and delivery details before production.
01
Define the configuration
Review voltage, capacity, cooling, enclosure, vector group and accessories.
02
Confirm the evidence
Prepare drawings, factory test reports and export documentation for review.
03
Coordinate delivery
Support production coordination, shipment preparation and after-sales communication.
