Are your transformers ANSI/IEEE compliant?
Yes. All U.S.-bound transformers are designed per ANSI/IEEE C57.12 series. UL listing available upon request.

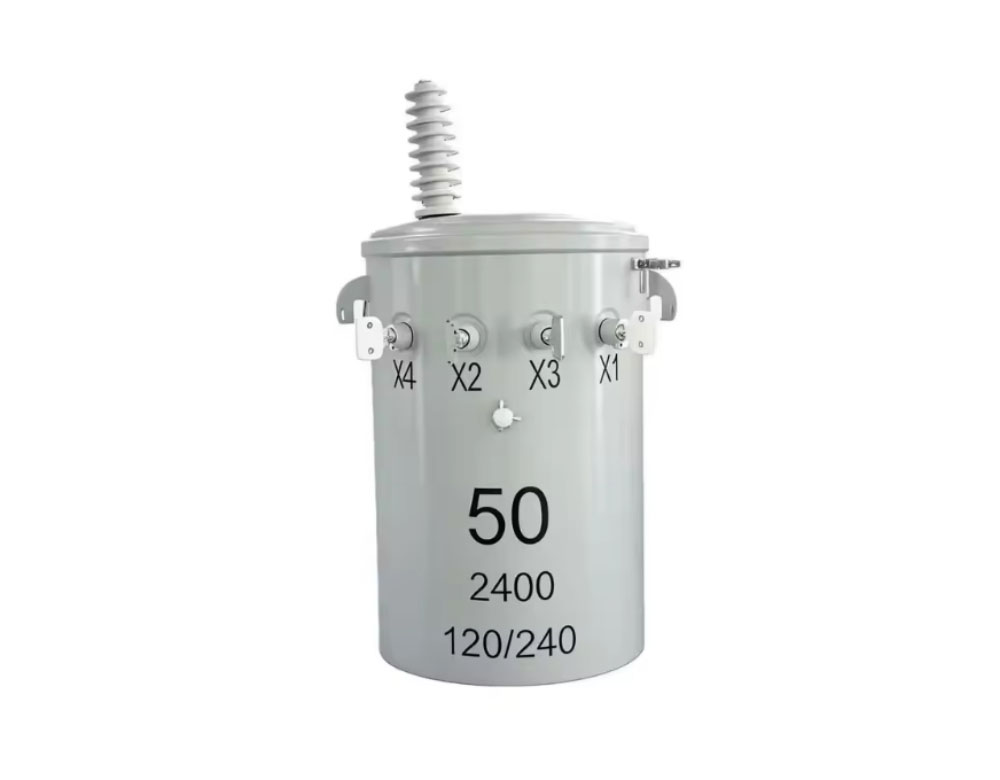

Single-Phase Pole-Mount Transformers
Technical parameters, project-specific options and a quotation based on your requirements

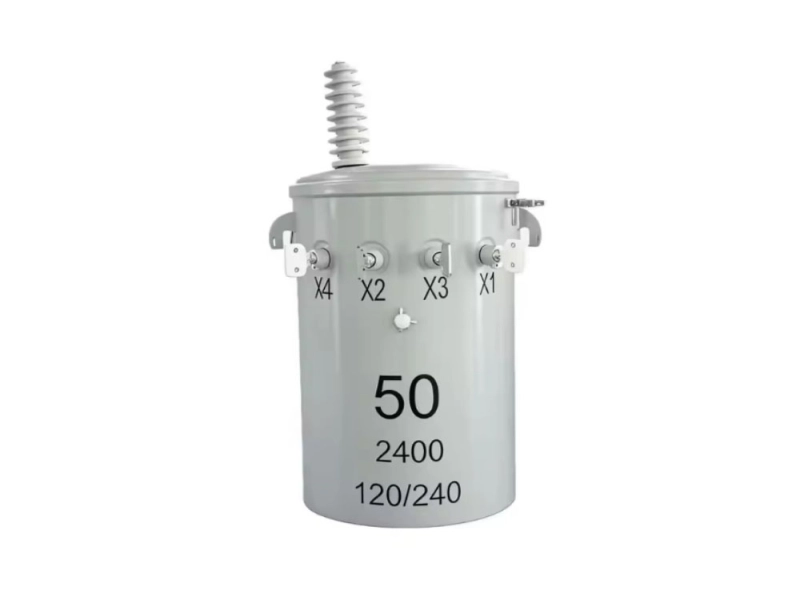

Product gallery
Project reference
Transformer product
Single-Phase Pole-Mount Transformers
Key Selling Points
Lightweight design for easy field installation
High overload capacity, suitable for rural load fluctuations
Compliant with RUS standards
ConfigurationCustom voltage & capacity
StandardsIEC / ANSI / IEEE support
DocumentationFactory test reports
Certifications and documentation: ISO 9001, ISO 14001, ISO 45001, CE, UL
Engineering support for project-specific transformer selection
Custom voltage, capacity, vector group, enclosure and accessories
Factory testing, export documentation and after-sales support
Detailed information
Product details
North American standard single-phase overhead transformers for residential areas, rural power, and small commercial loads. Lightning protection, low loss, long service life, fully adapted to U.S. distribution systems.
Standards
IEEE C57.12.20 / DOE 10 CFR Part 431
Designed around your systemConfirm voltage, capacity, frequency and installation conditions with our team.
Built for project reviewReceive a configuration, quotation and documentation matched to the application.
| Item | Specifications |
|---|---|
| Capacity | 10 / 15 / 25 / 37.5 / 50 / 75 / 100 / 167 kVA |
| Primary Voltage | 13.8 kV / 7.2 kV / 12.47 kV / 24.94 kV |
| Secondary Voltage | 240 / 120 V (split-phase) |
| Number of Phases | Single-phase |
| Cooling | ONAN (self-cooled) |
| Mounting Type | Pole-mounted or platform-mounted |
| High-Voltage Bushing | Plug-in type / Porcelain bushing |
Need a different voltage, capacity or accessory configuration? Send the requirement for a technical review.
From specification to delivery
Support for your transformer project
Transformer selection is more than choosing a capacity. We help align the electrical requirements, documentation and delivery details before production.
01
Define the configuration
Review voltage, capacity, cooling, enclosure, vector group and accessories.
02
Confirm the evidence
Prepare drawings, factory test reports and export documentation for review.
03
Coordinate delivery
Support production coordination, shipment preparation and after-sales communication.
.webp)
Russia SCB-630~2500 Transformer Project
View Details.webp)
Belarus SFFLZ-62000kVA-115kV Transformer Project
View Details
Uzbekistan SSFZ-16000/110 Transformer Project
View Details.webp)
Indonesia S13-2500/6.3 Transformer Project
View DetailsFrequently Asked Questions
Check Our Frequently Asked Questions
What is your warranty?
2 years (extendable upon negotiation).
Can you provide third-party test reports?
Yes. We provide complete factory test reports. Third-party witnessed testing can be discussed on a per-project basis.
What is the minimum lead time for emergency orders?
As fast as 15 days for emergency replacements (strategic material reserve).
Do you have a U.S. warehouse or local support?
Main shipping from Shanghai. Remote technical support and on-site service coordination available.
Comprehensive Support & Information
Our FAQ section covers transformer products, insulation materials, and technical specifications, addressing design, manufacturing standards, quality control, and logistics inquiries. For further assistance, our technical team is readily available to assist.
Contact Us
PROJECT INQUIRY
Request a transformer quote for Single-Phase Pole-Mount Transformers
Share the information you already have. Our engineering team will review the requirement and recommend a suitable transformer configuration.
