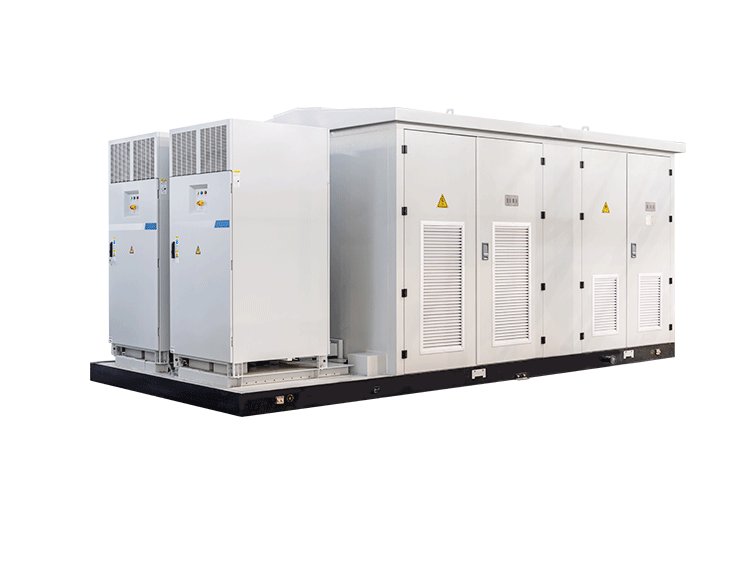

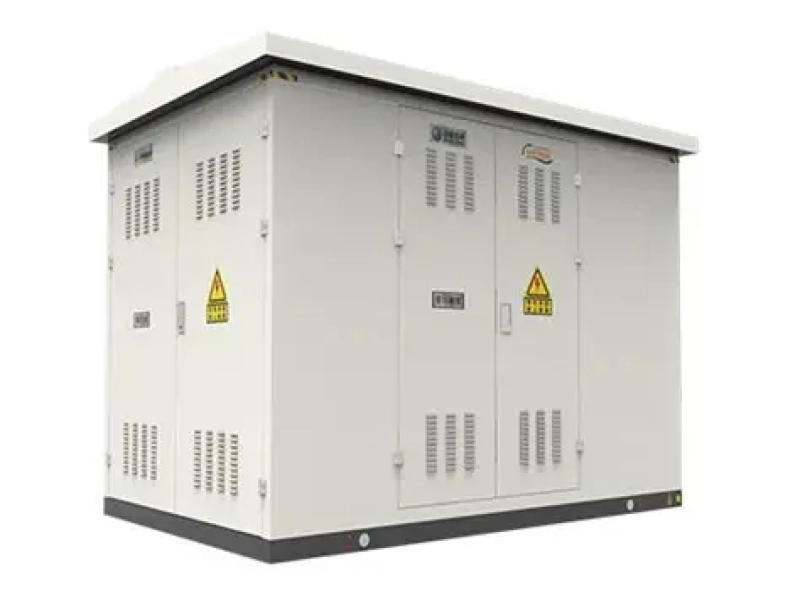

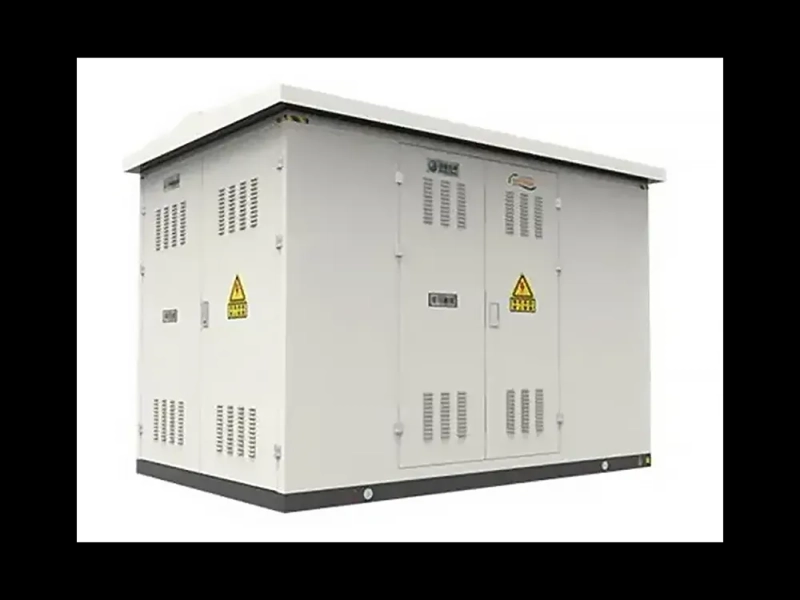

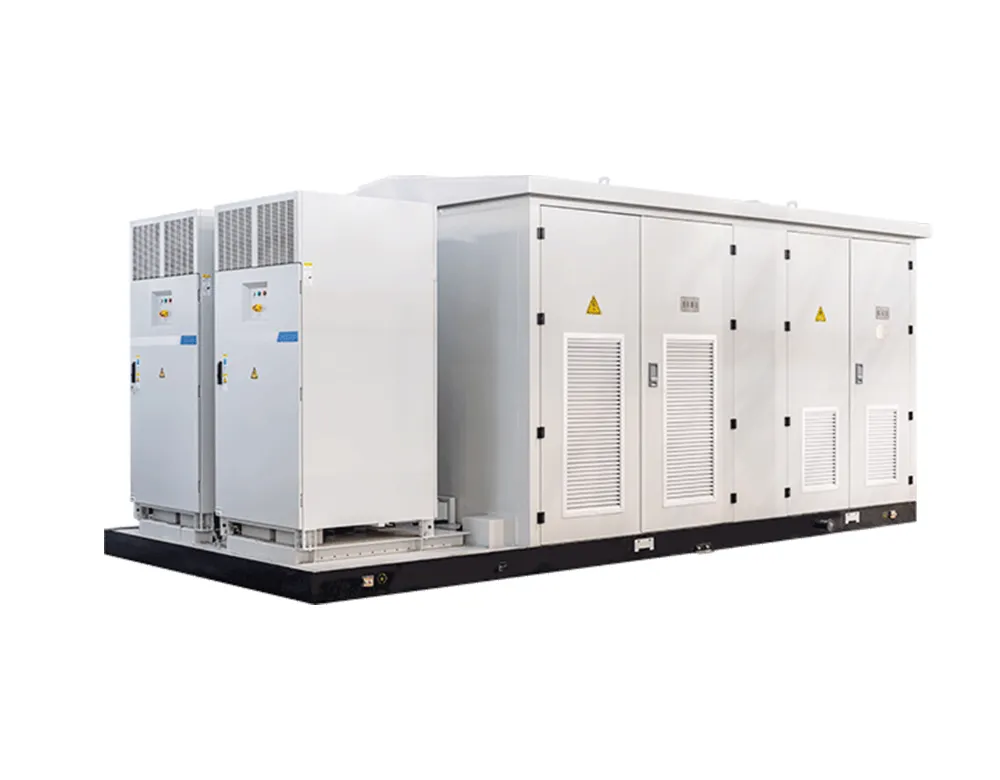

XWB Type European-style Prefabricated Substation

Product Introduction

The 10kV XWB Type European-style Prefabricated Substation integrates high-voltage switchgear, transformers, and low-voltage distribution systems into a sealed enclosure made of anti-corrosion alloy steel plates. Designed in compliance with IEC and GB standards, it features a compact structure, high protection level, and low noise. Ideal for residential communities, commercial centers, and municipal projects with high space utilization requirements, it delivers safe and reliable power distribution solutions.

Product Features

Key advantages of this series include:



<!--[if !supportLists]-->· <!--[endif]-->Fully Sealed Structure: IP54/IP55 protection rating, effectively resisting dust and water ingress for harsh environments

<!--[if !supportLists]-->· <!--[endif]-->Energy Efficiency: Low-loss silicon steel transformers reduce no-load losses by 15% and load losses by 10%, meeting national energy efficiency standards

<!--[if !supportLists]-->· <!--[endif]-->Intelligent Monitoring: Optional remote monitoring system for real-time parameter tracking, fault prediction, and automatic alerts

<!--[if !supportLists]-->· <!--[endif]-->Modular Design: Separate compartments for high-voltage, transformer, and low-voltage units, facilitating future expansion and maintenance

<!--[if !supportLists]-->· <!--[endif]-->Rapid Deployment: Factory prefabrication shortens on-site installation to 3-5 days, reducing construction costs

Product Classification

<!--[if !supportLists]-->· <!--[endif]-->By Capacity: 200kVA-2500kVA, meeting diverse load requirements

<!--[if !supportLists]-->· <!--[endif]-->By High-Voltage Configuration: Ring Main Unit (RMU) or Vacuum Circuit Breaker (VCB) options

<!--[if !supportLists]-->· <!--[endif]-->By Cooling Method: Natural Air Cooling (AN) or Forced Air Cooling (AF) for different ambient temperatures

<!--[if !supportLists]-->· <!--[endif]-->By Application:

<!--[if !supportLists]-->· <!--[endif]-->Standard Type: For general industrial and residential use

<!--[if !supportLists]-->· <!--[endif]-->Enhanced Type: Explosion-proof and fire-resistant design for chemical and mining industries

<!--[if !supportLists]-->· <!--[endif]-->Aesthetic Type: Environmentally integrated appearance for parks and scenic areas

After-sales Service

Comprehensive lifecycle support includes:



<!--[if !supportLists]-->· <!--[endif]-->Professional Installation: Certified engineers ensure on-site installation and commissioning meet specifications

<!--[if !supportLists]-->· <!--[endif]-->Regular Inspections: Biannual comprehensive checks including temperature rise tests and insulation resistance measurements

<!--[if !supportLists]-->· <!--[endif]-->Rapid Response: 7×24-hour hotline with 4-hour maximum response time for fault resolution

<!--[if !supportLists]-->· <!--[endif]-->Training Services: Free operation and maintenance training, with both digital and printed manuals provided

<!--[if !supportLists]-->· <!--[endif]-->Spare Parts Availability: Ample stock of critical components, with standard parts shipped within 24 hours
