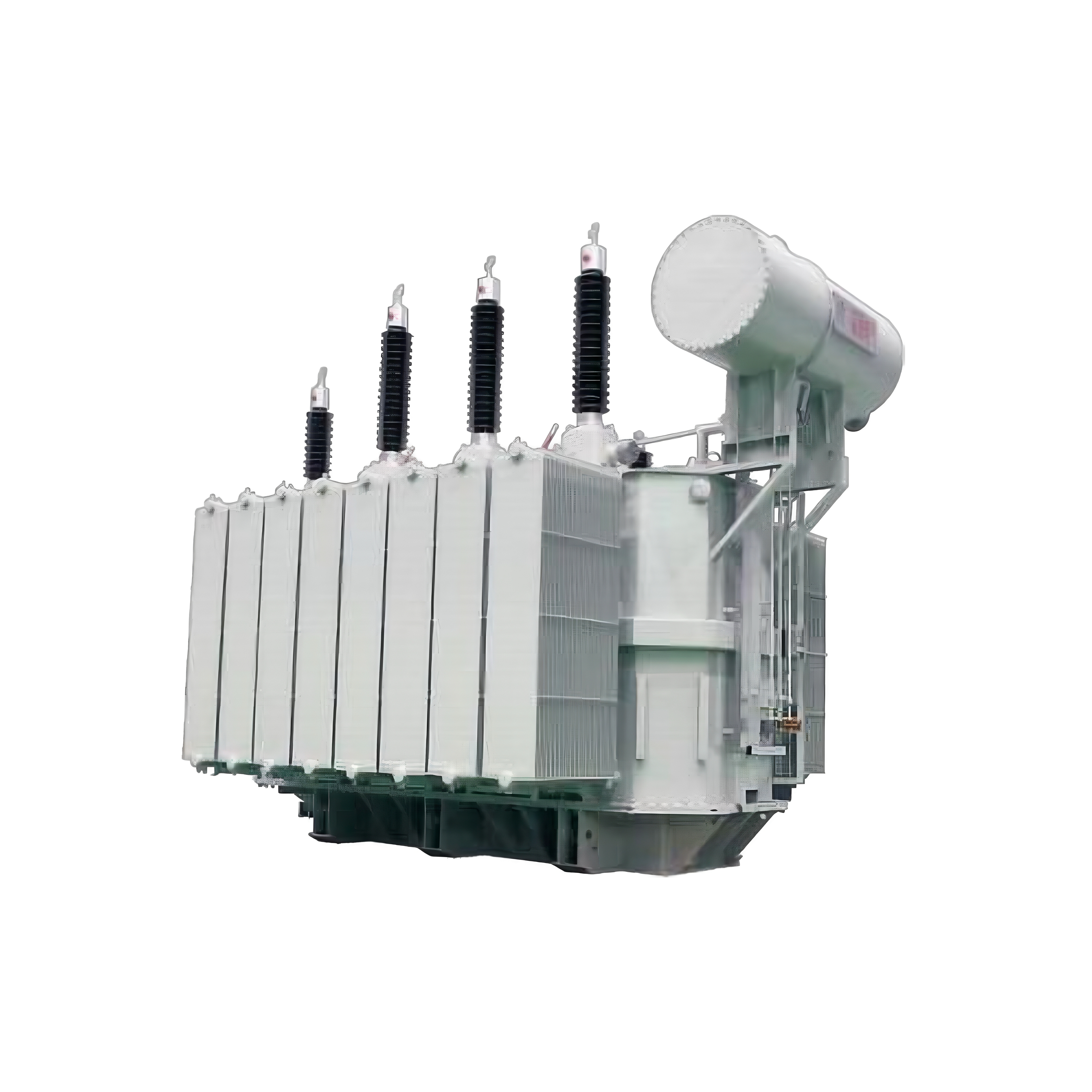

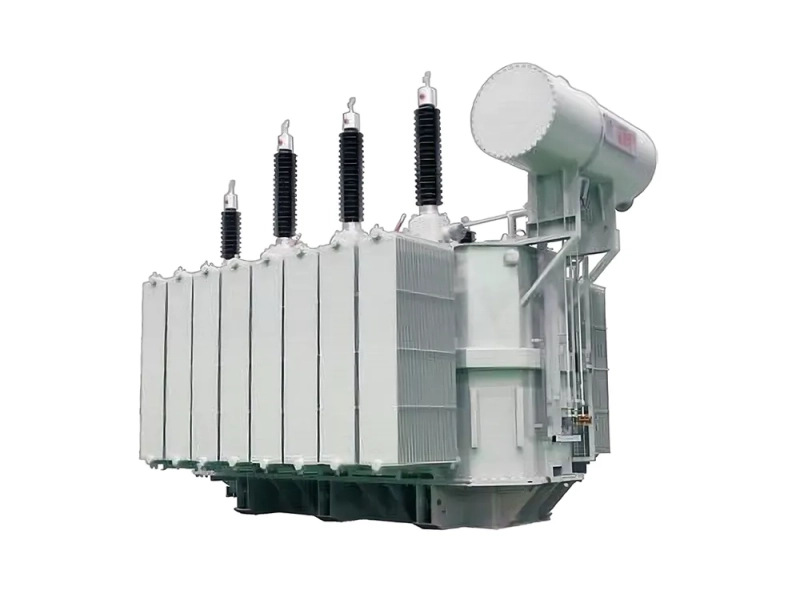

110kV Oil-immersed Power Transformers
Customized one-stop solution for transformers
The 110kV oil-immersed power transformer is adapted for 110kV substations, industrial parks, and new energy
power generation, and is designed for the efficient operation of the power system. High-permeability grain-
oriented silicon steel sheets are stacked in multiple steps to form a three / five-limb iron core, which is matched
with pie-type spiral windings to optimize the magnetic circuit and electromagnetic balance, resulting in lower
no-load and load losses; Full-sealed vacuum oil filling combined with nitrogen buffering, and the bell-type oil
tank is equipped with an intelligent breathing oil conservator, which more prominently delays insulation aging
and ensures long-term operation. It meets the highest energy efficiency, has strong impact resistance after
short-circuit tests, and integrates an on-load tap-changer to adapt to power grid fluctuations. The adaptability
to complex scenarios and local energy efficiency optimization (such as adaptation on the new energy power
generation side) are better. The insulation, noise, and protection reach the industry-leading level, focusing on
the efficient and reliable operation of regional power grids and new energy access.
Product Introduction
The 110kV oil-immersed Power Transformer is suitable for 110kV substations, industrial parks and new energy power generation, and is designed for the efficient operation of power systems. It adopts high-permeability grain-oriented silicon steel sheets stacked in multi-level steps to form a three / five-column iron core, combined with disc-type spiral windings, which optimizes the magnetic circuit and electromagnetic balance, resulting in lower no-load and load losses. The fully sealed vacuum oil injection combined with nitrogen buffering, and the bell-jar type oil tank equipped with an intelligent breathing oil storage cabinet, have a more prominent effect in delaying insulation aging, ensuring long-term operation. It meets the highest energy efficiency standards, has strong impact resistance through short-circuit tests, and integrates an on-load tap-changer to adapt to power grid fluctuations. It has better adaptability to complex scenarios and optimized local energy efficiency (such as adaptation to the new energy generation side). Its insulation, noise control and protection performance reach the industry-leading level, focusing on the efficient and reliable operation of regional power grids and new energy access.
Product Features
The advantages of 110kV oil immersed power transformers are prominent. High quality oriented silicon steel sheet iron core, low loss and more energy-efficient; Fully sealed fuel tank structure, delaying insulation aging; The coil has strong resistance to short circuits and stable operation; Intelligent voltage regulation to adapt to power grid fluctuations; Low noise operation, meeting environmental standards, is a reliable choice for power transmission and distribution.
Product Classification
Classified by phase number: can be divided into double winding transformers and three winding transformers
Classified by cooling method: Oil immersed self cooling (ONAN) transformer, Oil immersed air-cooled (ONAF) transformer, Forced oil circulation air-cooled (OFAF) transformer, and Oil circulation water-cooled (ONWF and OFWF) transformer
Classified by structure: iron core transformer and iron shell transformer
Classified by voltage regulation method: non excited voltage regulation transformer and on load voltage regulation transformer
Classified by sealing method: Non enclosed Oil Immersed Transformers mainly include series products such as S8, S9, S10, etc., which are widely used in industrial and mining enterprises, agriculture, and civil buildings.
Enclosed oil immersed transformers mainly include S9, S9-M, S10-M and other series products, which are mostly used in places with high oil pollution and chemical substances in the petroleum and chemical industries.
Sealed oil immersed transformers mainly include BS9, S9-, S10-, S11-MR, SH, SH12-M and other series products, which can be used for power distribution in various places such as industrial and mining enterprises, agriculture, and civil buildings.
After-sales Service
The after-sales service is comprehensive and considerate. We provide a 24-hour hotline response. After receiving a fault report, a professional team will quickly rush to the scene for investigation and repair. Regularly initiate follow-up visits, conduct comprehensive inspections, identify and eliminate potential hazards in advance, and ensure stable operation of equipment. Provide technical training to meet user needs and enhance their independent operation and maintenance capabilities. At the same time, establish sufficient spare parts inventory to ensure rapid supply. Free repair and replacement of faulty parts during the warranty period, and lifetime maintenance is also provided outside the warranty period, with only material costs charged, allowing you to focus on the development of the power industry without any worries.

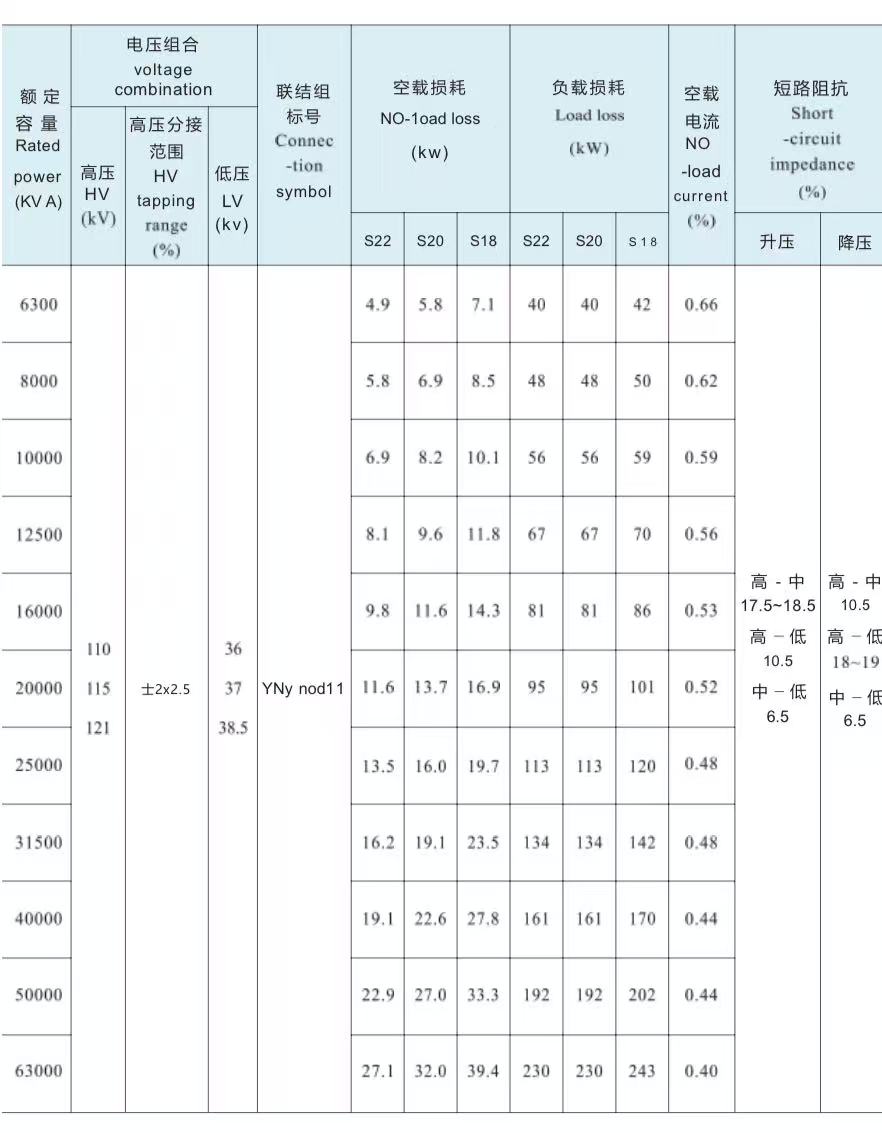

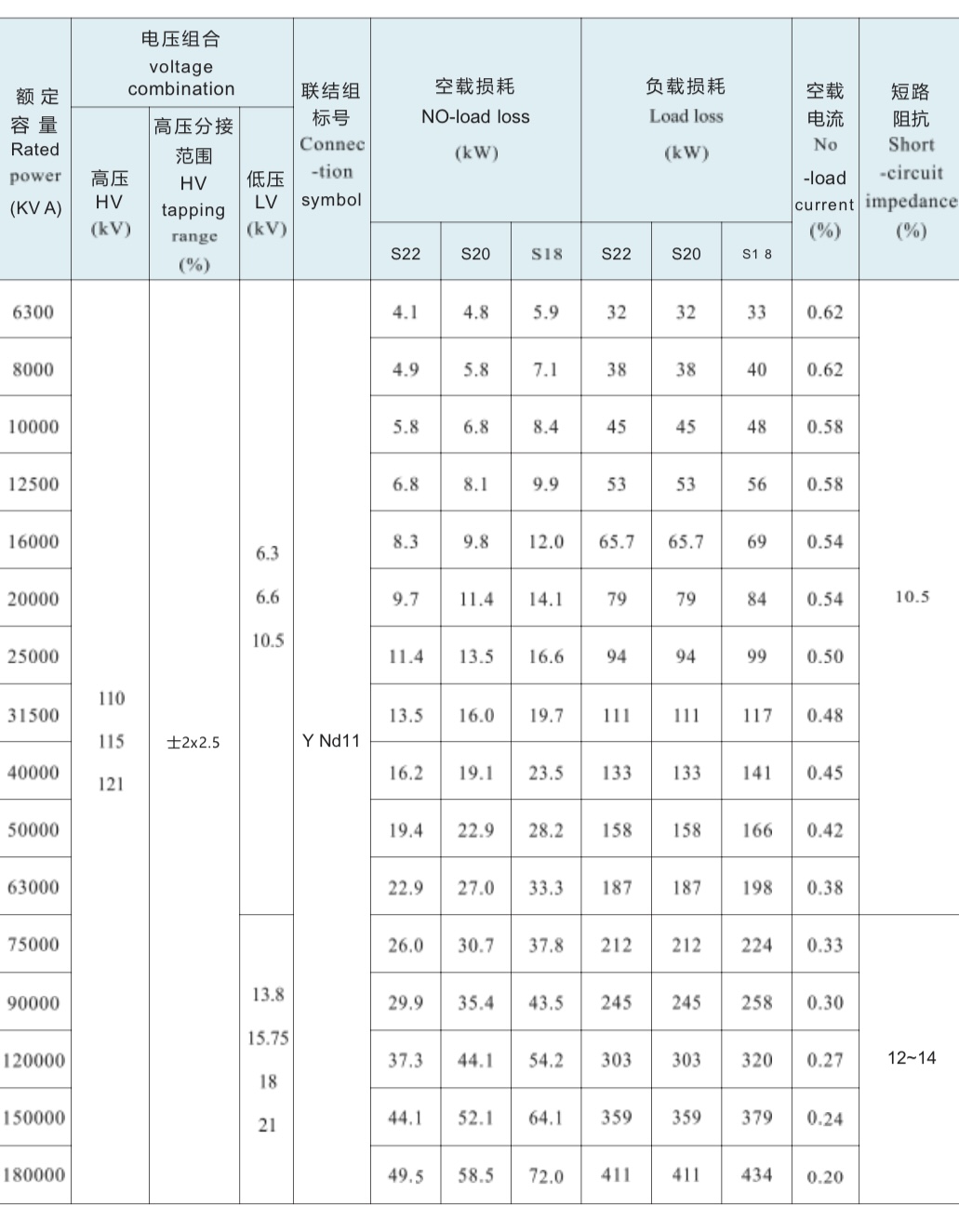

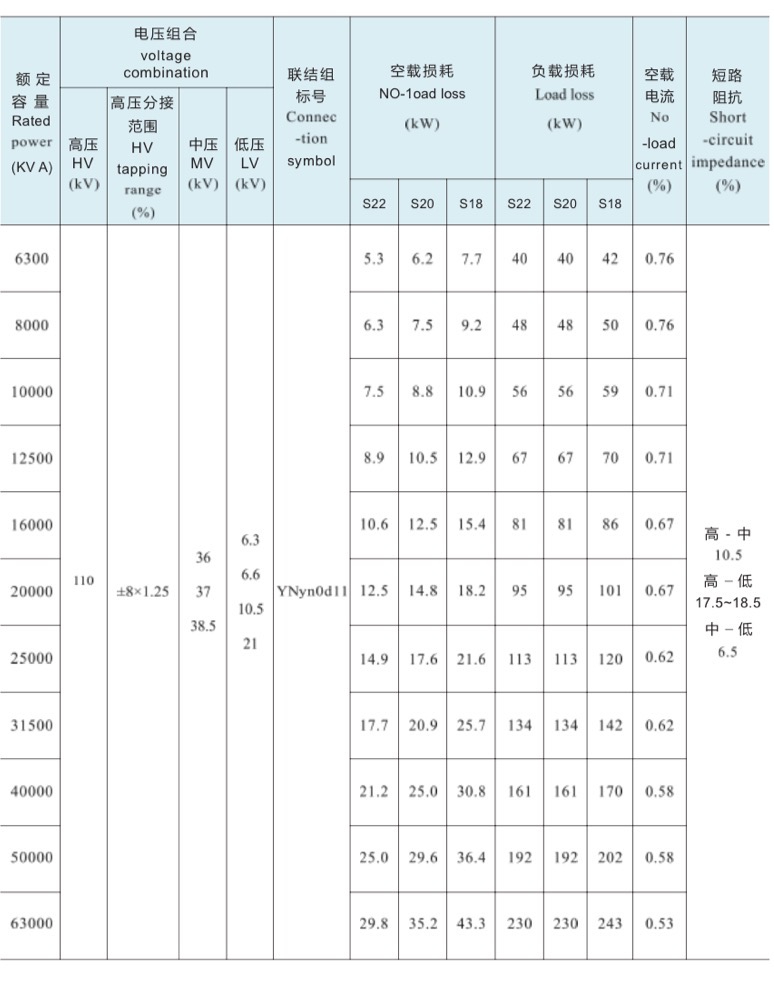

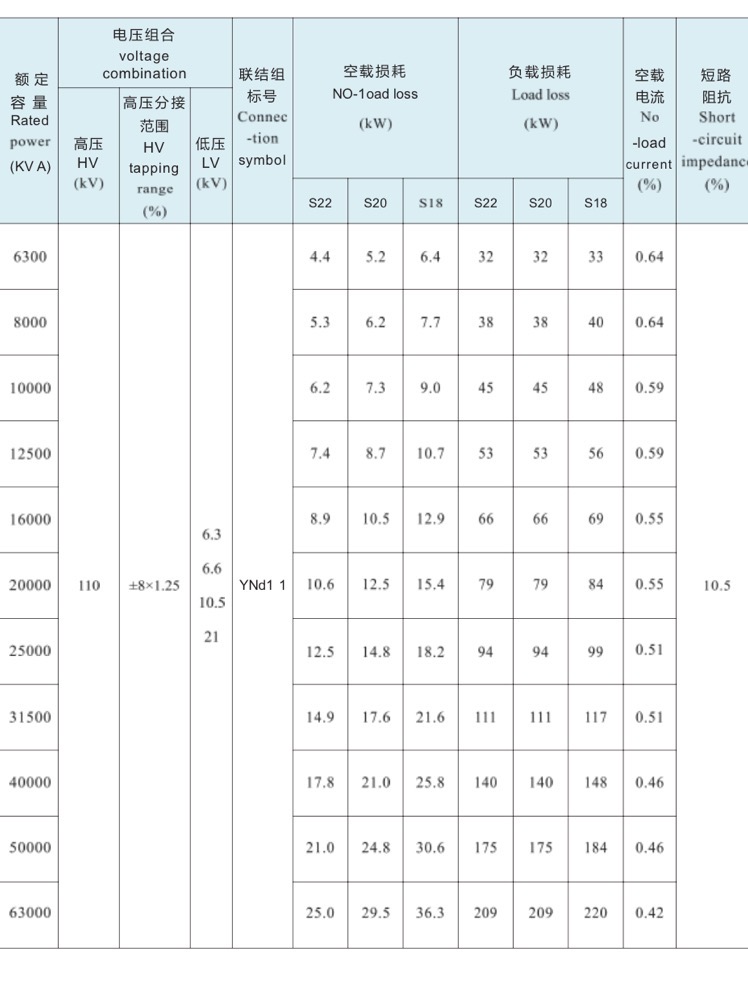

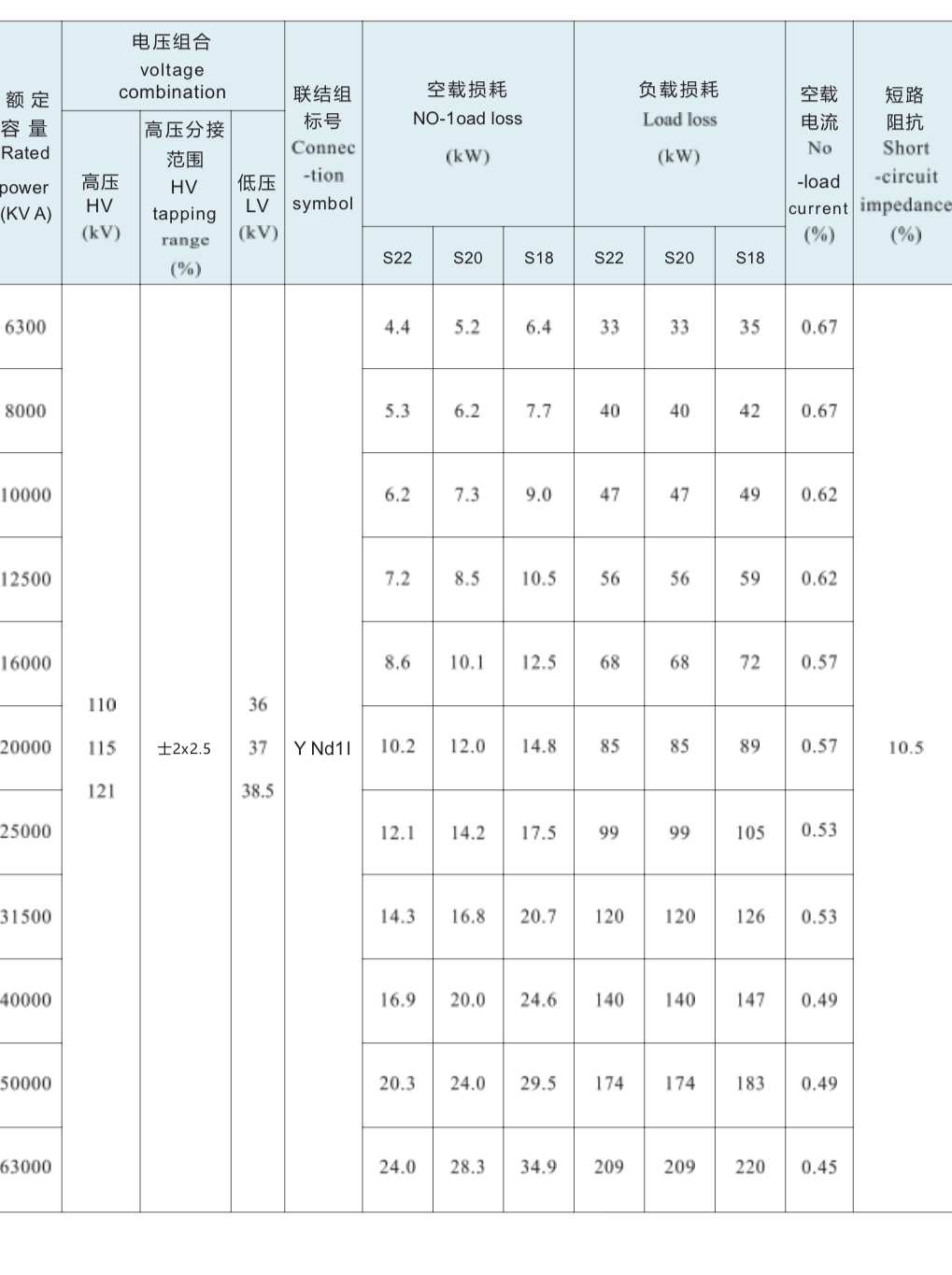

Technical Parameters
